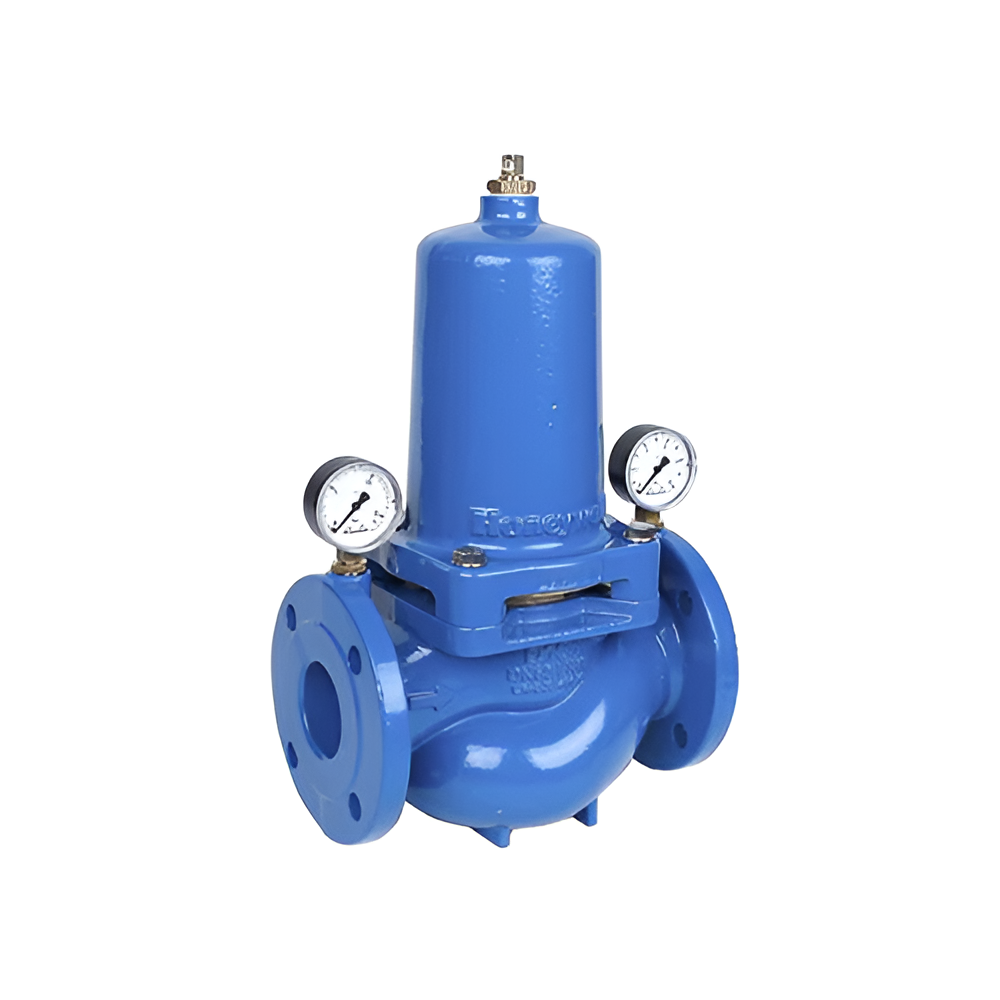

Honeywell Pressure Reducing Valve

D15S

The D15S is a high-capacity, pilot-operated pressure reducing valve designed for municipal water supply and large industrial complexes. It features a patented balancing system that maintains an extremely stable outlet pressure, preventing damage to downstream infrastructure during surges. The valve is constructed from durable ductile iron with an epoxy coating for superior corrosion resistance in underground or outdoor installations. It is a critical component for reducing water wastage and protecting large-scale plumbing networks.

Feature

Specification

Nominal Pressure

PN 16

Max. Inlet Pressure

16 bar

Outlet Pressure (DN50–100)

1.5 – 7.5 bar

Min. Pressure Drop

1.0 bar

Connection Sizes

2", 2 1/2", 3", 4", 6", 8"

Nominal Sizes

DN50, DN65, DN80, DN100, DN150, DN200
