Tyco Fire Sprinklers
Series TY-B
The Series TY-B is a versatile line of sprinklers available in a wide variety of K-factors, orientations, and finishes to meet diverse fire protection needs. Engineered for reliability, they are suitable for Light, Ordinary, and Extra Hazard occupancies. The design features a rugged brass frame and is available in multiple temperature ratings to suit different environmental conditions. Whether installed in a pendent position in a decorative ceiling or an upright position in an industrial warehouse, the TY-B series provides trusted performance backed by over 130 years of Tyco fire protection expertise.
Feature | Details |
Response Type | Standard Response (5mm Glass Bulb) |
K-Factors | 2.8 ($40.3$), 5.6 ($80.6$), and 8.0 ($115.2$) |

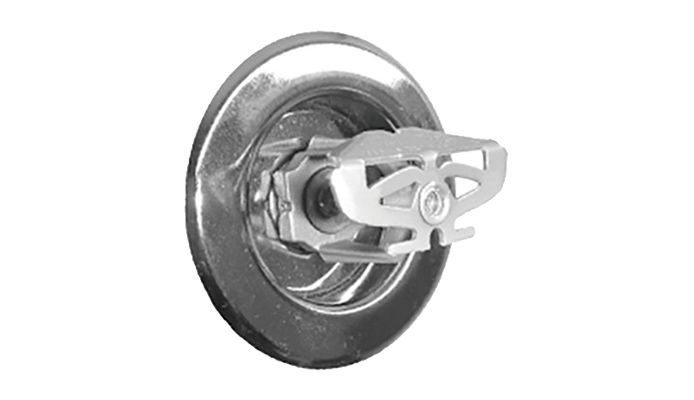

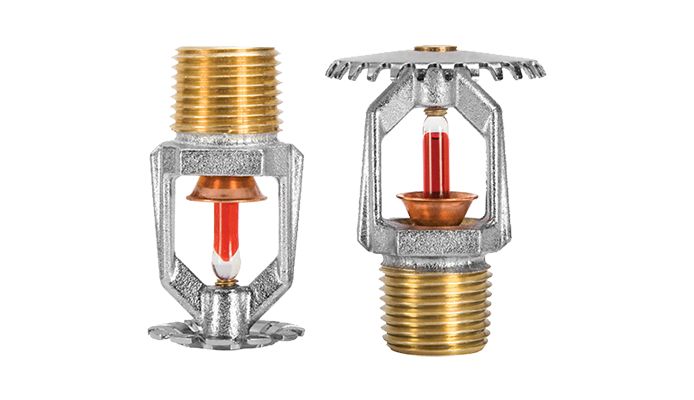

Orientations | Pendent, Upright, Recessed Pendent, Horizontal Sidewall, Vertical Sidewall |
Thread Size | 1/2" NPT or 3/4" NPT (Depending on K-factor) |
Temperature Ratings | Up to 360°F ($182°C$) |
Maximum Pressure | 175 PSI ($12.1\text{ bar}$) |
Approvals | UL, C-UL, FM, NYC, LPCB, and VdS |
Occupancy Class | Light, Ordinary, and Extra Hazard |
