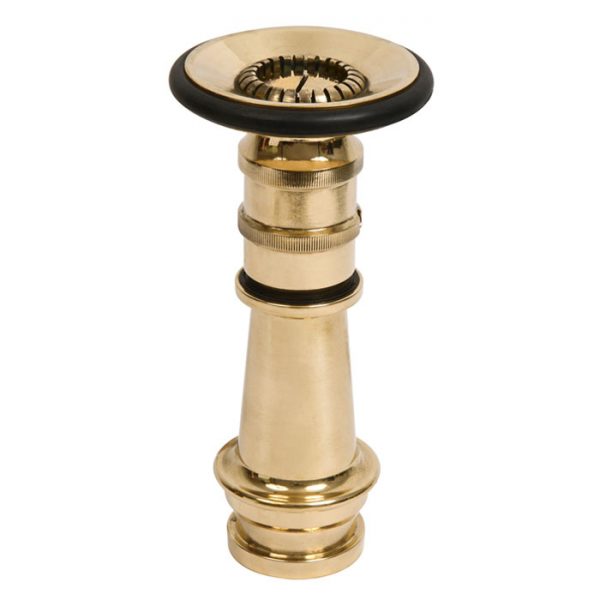

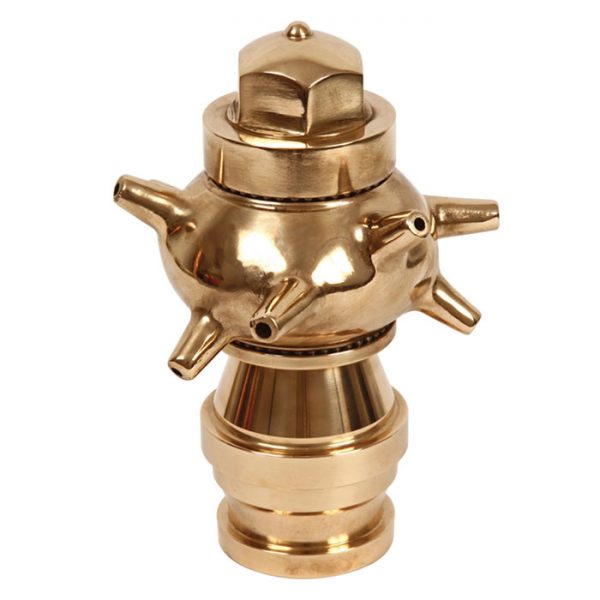

Newage Branch Pipe

Solid brass fire nozzle

The Newage series of branch pipes represents a comprehensive collection of water-delivery solutions engineered for high-performance firefighting across industrial, marine, and municipal sectors. These branch pipes are precision-crafted from high-grade materials like Gunmetal, Stainless Steel, and Aluminum Alloy to ensure long-term durability and resistance to extreme environmental conditions. Designed for seamless integration with standard fire hoses, the range offers a variety of spray patterns—from concentrated long-range jets to wide-angle protective fog curtains—allowing firefighters to adapt instantly to evolving emergency scenarios. Whether for high-pressure cooling, rapid fire suppression, or specialized naval use, the Newage branch pipe range provides the accuracy and reliability essential for modern fire protection.

Inlet Connections

Standard: 63mm (2.5”) Male Instantaneous (BS 336) Options: BSP / NPT / NH Threaded (Male or Female) or Storz couplings

Discharge Patterns

Basic: Solid Jet (Short/Long Branchpipes) Multi-Mode: Jet, Spray (Fog), and Shut-off (Triple Purpose/Navy/Combat)

Flow Rates (at 7 bar)

Standard Jet: ~400 to 500 LPM depending on tip size Specialized: 750 to 6000 LPM for Jumbo Curtain Nozzles

Standard Finish

Natural Polish (standard) or Chromium Plated (premium/marine)

Standard Compliance

Manufactured in accordance with IS: 903 (Branchpipes) and IS: 2871 (Triple Purpose)
