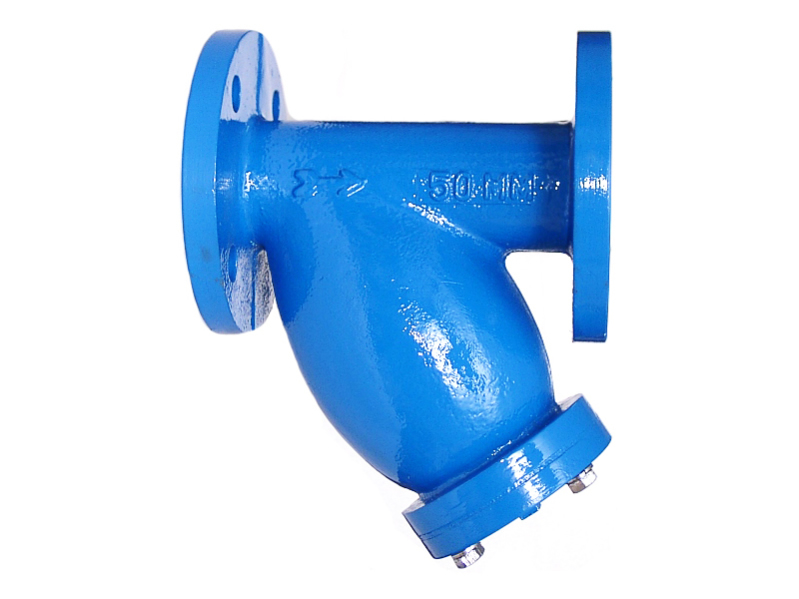

Kartar Y-Type Strainer

Essential for protecting downstream valves and sensitive equipment, the Kartar Y-Type Strainer filters out debris, rust, and foreign particles from the pipeline. It features a heavy-duty cast iron body and a high-grade stainless steel perforated screen that efficiently captures contaminants without restricting flow. The design includes a convenient drain plug at the bottom of the "Y" chamber, allowing for easy cleaning and removal of accumulated waste. These strainers are indispensable in steam lines, HVAC systems, and industrial fluid networks.

 Feature

Technical Specification

Body Material

Cast Iron (IS: 210 Gr. FG 200)

Screen Material

Stainless Steel (AISI 304) Perforated Sheet

Test Pressure

21.1 kg/cm² (Hydraulic)

Working Pressure

10.55 kg/cm² (Steam)

Drain Plug

Provided at the bottom for easy cleaning
