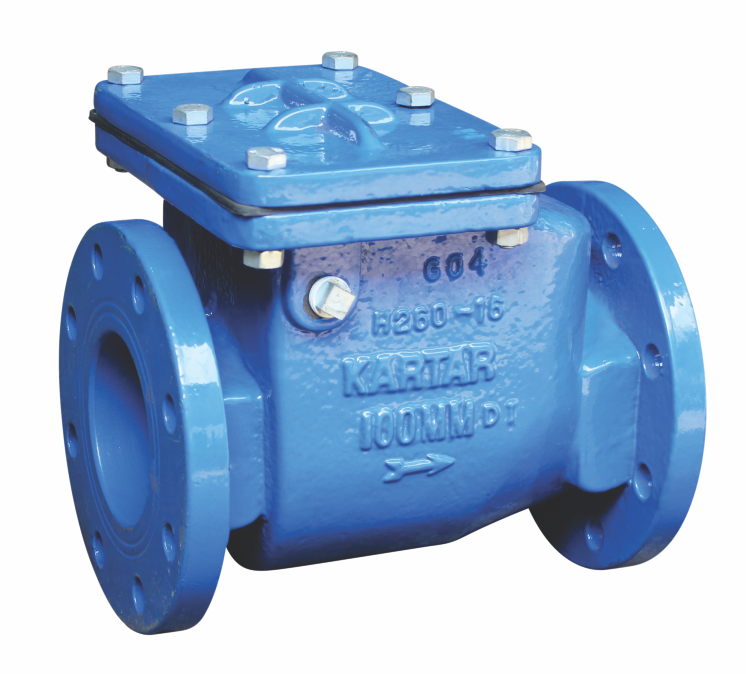

Kartar CI Non Return Valve

This swing-type non-return valve is a critical safety component designed to prevent backflow in pipelines, protecting pumps and upstream equipment from damage. Conforming to IS:5312, the K514 features a precision-engineered rubber seat that ensures a bubble-tight shut-off even at low pressures. Its cast iron flanged body is built for easy installation and maintenance-free operation over long service periods. It is the industry standard for fire fighting systems, HVAC networks, and domestic water supply applications.

Feature

Technical Specification

Model Number

K-514 (PN 10) / K-516 (PN 16)

Size

50mm (2 Inch)

Standard

IS: 5312 (Part-1)

Body Material

Cast Iron (IS: 210 Gr. FG 200)

Type

Single Door, Swing Type

Seat Material

Resilient Rubber (Nitrile/EPDM)

End Connection

Flanged Ends (as per IS: 1538)

Weight

Approx. 8 - 10 kg (varies by pressure rating)
