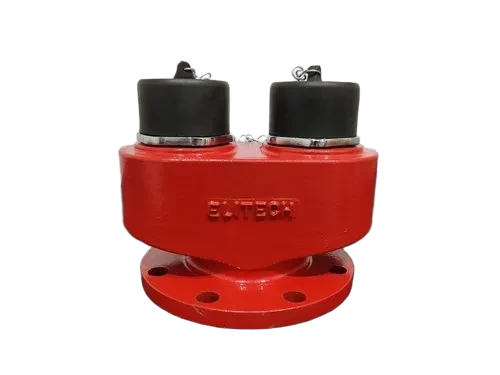

Elitech 2 Way Inlet Breeching Valve

High-Safety Industrial Flame Protection

The Elitech 2-Way Inlet Breeching is designed for installation at the ground level of buildings to provide an external connection point for fire department hoses. It features a robust cast iron or ductile iron body, equipped with two 2.5" (65mm) instantaneous male inlets that include non-return valves to prevent backflow and maintain pressure within the riser. The unit is typically housed in a red-coated steel cabinet with a glass front for easy identification and access. Built to withstand high-pressure environments, it ensures that fire crews can effectively supply water to upper floors where the local water supply may be insufficient.

Feature

Detail

Brand

Elitech

Inlet Type

2 x 2.5" (65mm) Instantaneous Male (BS336)

Outlet Type

4" (100mm) or 6" (150mm) Flanged

Body Material

Spheroidal Graphite Ductile Iron or Cast Iron

Test Pressure

20 Bar (300 PSI)

Working Pressure

12 Bar (175 PSI)

Inlet Components

Non-return valves and drain valve
